Impulse Fire Extinguisher

Impulse Fire Extinguisher

This impulse fire extinguisher is a powerful tool for firefighting. It meets the XF534-2005 standard. The National Fire Equipment Quality Supervision and Inspection Center has tested it. We, Taizhou Mingxin Fire Protection Technology Co., Ltd., are proud to offer this advanced system.
Send Inquiry
Description
Technical Parameters

Advanced Technology for Tough Fires

MGYH7116

This impulse fire extinguisher is a powerful tool for firefighting. It meets the XF534-2005 standard. The National Fire Equipment Quality Supervision and Inspection Center has tested it. We, Taizhou Mingxin Fire Protection Technology Co., Ltd., are proud to offer this advanced system. It uses compressed air to fire a high-speed mist of water. This technology is more effective than a standard hose. The design is based on our many patents and years of innovation. It is a top choice for professionals.

Parameter

Specification

Fire Extinguishing Agent

Water / Water-based

Driving Gas

Compressed Air

Water Tank Volume

12 L

Air Cylinder Volume

3 L

Air Cylinder Nominal Pressure

30 MPa

Gas-Water Mixing Tank Pressure

2.0 MPa

Gas-Water Mixing Tank Volume

0.93 L

Water Storage Tank Volume (for mixing)

1.22 L

Water Tank Working Pressure

1.1 MPa

Total Water Tank Volume

13.7 L

Effective Pulse Discharges

11 times

Jet Range

24 m

Pulse Interval Time

3 seconds

Discharge Residual Rate

3.6%

Total Weight (with agent)

33.9 kg

Fire Extinguishing Performance

4A, 5B after 10 pulses



Designed for Mobility and Power

This impulse fire extinguisher gives you both power and mobility. It can reach a fire 24 meters away with a single pulse. The pulse interval is only 3 seconds. This allows for a fast and strong attack on the fire. The total weight with liquid is 33.9 kg. This makes it manageable for a team to move and use. It is perfect for areas with limited water supply because it uses water so efficiently. The system shows its strength in tests. It can reach a 4A and 5B fire rating after just 10 pulses.

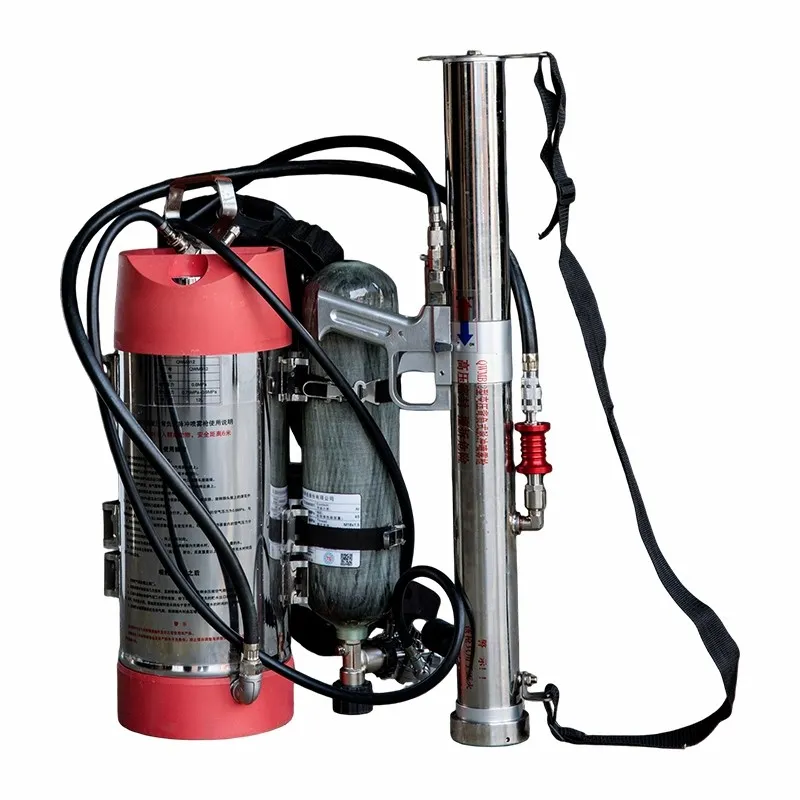

MGYH7117

Your Partner in Fire Safety

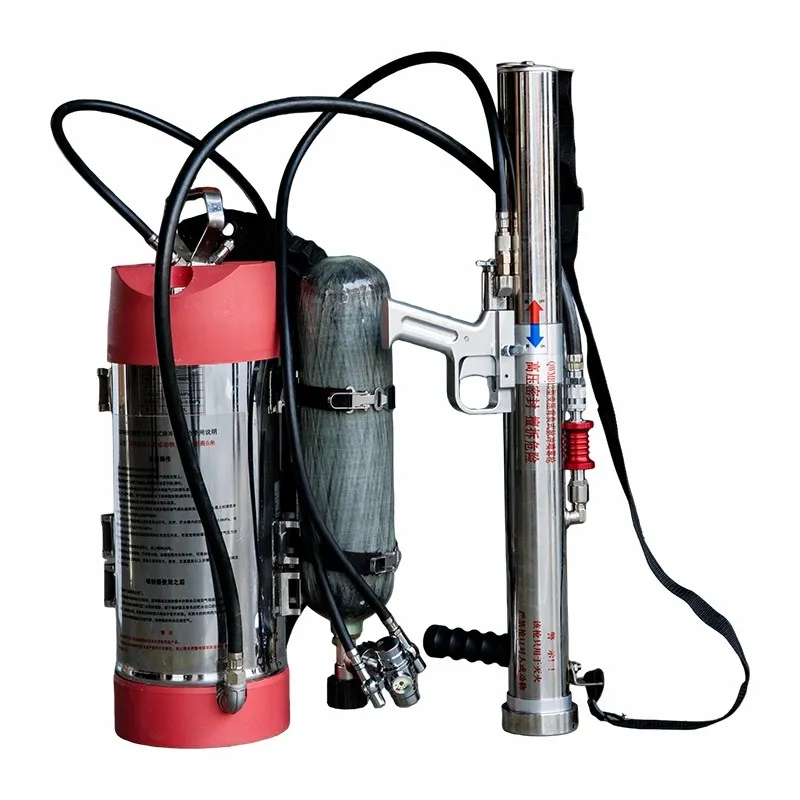

MGYH7118

At Mingxin, we focus on quality and service. We produce this impulse fire extinguisher in our factory in Taizhou. Our factory has all the necessary equipment to ensure top quality. We have been a trusted supplier to fire departments since 2015. Our after-sales service is just as strong as our products. We offer a one-year free warranty. Our 24-hour service line is always ready to help. We provide full support, from training to maintenance. You can count on us.

Hot Tags: impulse fire extinguisher, China impulse fire extinguisher manufacturers, factory, Backpack Water Mist Fire Extinguisher, fire extinguisher, Impulse Fire Extinguisher, Portable Water Fire Extinguisher, Rolling Fire Extinguisher
